Solid-liquid separation is a broad process family rather than one piece of equipment. A chemical plant may use a liquid bag filter for pre-filtration, a centrifuge to recover crystals and a filter press to dewater the remaining solids. A mining operation may favor press or vacuum filtration, while a food or pharmaceutical line may require low-lint bags and carefully documented materials. Feierte’s solid-liquid separation range covers liquid filter bags, monofilament filter cloth and multifilament filter cloth, with polyester, polypropylene and nylon product families serving different operating conditions. Selecting between these formats requires a system-level view of the process.
For B2B buyers, the first decision is not “which cloth has the smallest micron rating?” It is “what separation mechanism does the process need?” Pressure filtration, centrifugal filtration, bag housing filtration and vacuum filtration impose different stresses and flow patterns. The filtration medium must match the equipment, particle behavior, liquid chemistry, temperature, cleanliness target and maintenance strategy. A properly selected medium can reduce product loss, protect downstream equipment, improve cake discharge and extend replacement intervals; a poorly selected medium can shift costs into labor, energy, washing and downtime.
| Filtration Format | Best Suited To | Primary Buying Criteria |
|---|---|---|

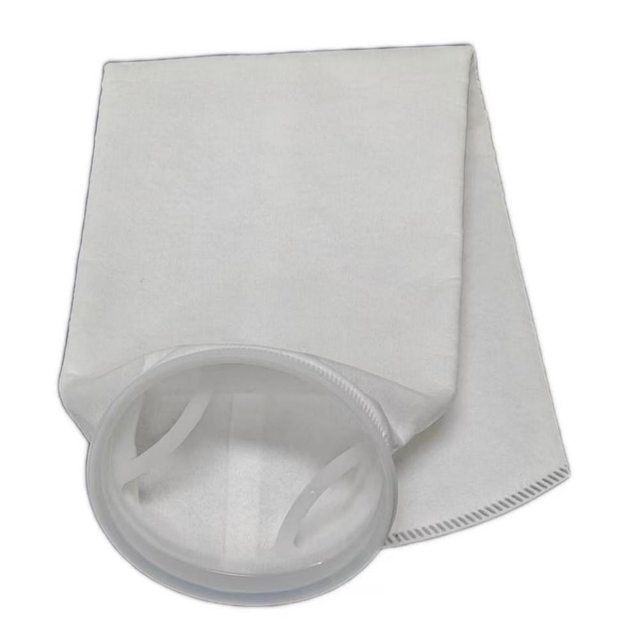

| Liquid filter bag | Batch or continuous removal of suspended solids from process liquids in bag housings | Micron rating, nominal/absolute retention, bag size, collar, material and dirt-holding capacity |
| Filter press cloth | Cake-forming pressure filtration and sludge/slurry dewatering | Weave, permeability, cake release, plate fit, chemical resistance and mechanical strength |
| Centrifuge filter bag | Rotational separation and recovery of crystals, powders or other solids | Bag geometry, attachment, fabric strength, retention, drainage and abrasion resistance |
| Vacuum filtration cloth | Continuous or semi-continuous dewatering on drum/belt systems | Tracking, seam design, permeability, cake release and repeated flexing |
Monofilament cloth is woven from smooth single filaments. Its surface tends to be easier to clean and the openings are relatively well defined, making it useful for surface filtration, cake discharge and applications where particles should not embed deeply into the fabric. Multifilament cloth uses yarn bundles composed of many finer filaments. This produces a more complex structure that can provide different particle-capture behavior and is often used where finer retention or filtrate clarity is important. The trade-off can be greater particle penetration into the yarn structure and a different cleaning response.
A plant suffering from poor cake release should not automatically select a finer cloth; a smoother monofilament construction may be more important. Conversely, a process that consistently passes fine particles through a coarse monofilament may need a denser weave, a multifilament construction or a different filtration stage. Feierte offers both structures and can fabricate them into finished filtration components, allowing the design to address the process problem rather than simply replace fabric by appearance.
| Polymer | Relative Strengths | Typical Applications | Key Selection Caution |
|---|---|---|---|
| Polyester (PET) | Dimensional stability, useful temperature capability and good resistance to many acidic media | Filter presses, FBD bags, process filtration, general industrial separation | Review strong alkali exposure and exact temperature |
| Polypropylene (PP) | Broad acid/alkali resistance, low moisture absorption and economical chemical service | Liquid bags, centrifuge bags, chemical filtration, wastewater | Moderate temperature capability must be respected |
| Nylon (PA) | High tensile strength, toughness and abrasion resistance | Mining, minerals, ceramics and heavy-duty slurry filtration | Check acidic media and process chemistry carefully |
| Special media | Used for more severe temperature, corrosion or product-safety requirements | High-demand chemical, pharmaceutical or specialty separation | Confirm documentation, cost and fabrication feasibility |
Particle size is important, but shape and compressibility often determine how a filter behaves. Hard crystalline particles may form a permeable cake that drains quickly. Soft biological solids, gels or pigments can deform and blind the surface. A broad particle-size distribution can cause fines to migrate into a coarse support structure, while a narrow distribution may be easier to separate. Buyers should provide a representative particle-size range and describe whether the solids are hard, sticky, fibrous, oily or compressible. This information helps determine whether surface or depth capture is preferred.
Fluid viscosity also affects pressure drop and throughput. A bag that works well with water-like liquid may create excessive resistance with resin, syrup or oil. Temperature can change viscosity and also affect polymer strength. Therefore the actual operating temperature—not only ambient temperature—should be included in the specification. Chemical concentration and cleaning agents should also be considered because intermittent cleaning can be more aggressive than the process liquid itself.
Chemical processing uses filter cloth and bags to remove catalyst fines, pigments, precipitates, resin gels and other suspended solids. The principal risks are chemical attack, product contamination and unstable filtration as viscosity changes. Mining and mineral operations focus on abrasion, high solids load, cake dryness and throughput. Wastewater treatment must balance solids capture with economical dewatering because every percentage point of additional cake dryness can affect disposal volume.
Food and beverage processors use filtration for oils, syrups, juices, fermentation liquids and ingredient clarification. Pharmaceutical and fine chemical production may use the same basic separation mechanisms but with stricter requirements for cleanliness, lint control, traceability and supporting documents. Feierte states that certain food-grade, FDA-related, plasticizer-free, material and antistatic reports are available depending on the product and material, so these should be specified during qualification.
| Observed Problem | Possible Filtration Cause | What to Review |
|---|---|---|
| Filtrate is too cloudy | Media too open, damaged seam, bypass or unstable cake formation | Pore/weave, sealing, installation, particle size and early-cycle behavior |
| Cycle time keeps increasing | Cloth blinding, viscosity increase or media too restrictive | Cleaning, permeability, temperature, weave and slurry changes |
| Cake is difficult to release | Surface too rough, solids embedding or inappropriate yarn construction | Monofilament option, finish, cleaning and cake moisture |
| Filter media fails early | Abrasion, chemical attack, excessive temperature or incorrect fit | Polymer compatibility, wear points, seam/edge design and installation |
| Downstream filters clog quickly | Upstream retention insufficient or bag overloaded | Micron strategy, nominal/absolute rating, flow and change-out frequency |
Many plants get better results by dividing the separation duty across several stages. A coarse liquid bag can remove large contaminants before a finer cartridge or membrane. A centrifuge can recover valuable bulk solids, while a polishing filter treats the mother liquor. A filter press can dewater sludge after upstream clarification. In these systems, it is usually inefficient to make the first stage capture every fine particle. The correct objective is to protect the next stage, maintain throughput and achieve the final quality at the lowest total operating cost.
When evaluating a new filtration medium, compare more than unit price. Record filtrate clarity, flow or cycle time, product yield, cake moisture, cleaning time, replacement frequency and labor. These metrics reveal whether a more durable or better-matched fabric actually reduces total cost per batch or per cubic meter processed.
Feierte provides customized filtration solutions based on filtration precision, operating conditions, chemical compatibility, temperature and equipment specification. The company describes in-house control from raw material selection and weaving through precision cutting, sewing and final inspection. For a B2B project, this allows the approved fabric to be converted into a finished bag or cloth with controlled dimensions, holes, collars, seams, reinforcement and identification.
Before mass production, a sample or small validation batch is advisable when the process is critical or the current filtration problem is not well understood. Once performance is accepted, the buyer should freeze the material code, weave, dimensions and finishing details so repeat orders remain consistent.
For a custom project, Feierte can work from drawings, samples, equipment information, process data, or an existing replacement specification. The objective is to match the filtration medium and finished construction to the actual operating window rather than forcing a generic catalog item into the process. Before requesting a quotation, procurement and engineering teams should prepare the following information:
Send the available data through the Feierte Contact Us page. Feierte can then review media compatibility, filtration precision, dimensions, finishing, fabrication details, sample requirements, packaging, and repeat-order control before mass production.
A filter bag is a finished filtration component shaped to fit a housing or machine, while filter cloth is the woven or felt media that can be installed directly on equipment or fabricated into bags and other components. The correct format depends on the filtration system.
Not necessarily. A rating that is unnecessarily fine can increase pressure drop, reduce throughput and cause rapid blinding. The target should be the coarsest medium that reliably achieves the required downstream quality while maintaining acceptable operating cost.
Monofilament is often preferred for defined openings, smooth surface, easier cleaning and cake release. Multifilament can be useful for finer particle capture and filtrate clarity. Slurry behavior and cleaning requirements should guide the choice.
Yes, but the change should be reviewed against chemistry, temperature, mechanical load, permeability and filtration requirements. A material swap can alter both service life and process performance, so sample validation is recommended.
