Feierte’s polyester mesh belt category is not one single conveyor product. It includes several technically different woven or spiral media designed for continuous industrial processes: sludge dewatering belts for belt filter presses, spiral mesh belts for drying and conveying, polyester forming mesh for the wet end of paper machines, and desulfurization mesh for gypsum dewatering on vacuum belt filters. All four products use open textile structures to move water, air or process slurry through the belt while supporting solids or a continuous web. Their selection logic is therefore fundamentally different from needle-felt dust filters.
For B2B buyers, the key parameters are permeability, weave or spiral geometry, tensile stability, belt tracking, seam/joint design, edge reinforcement, width, length, process chemistry and the way the product releases from the belt surface. A mesh belt that drains quickly but tracks poorly can damage equipment. A belt with excellent strength but an inappropriate opening can lose solids or mark paper. Feierte customizes dimensions, permeability and connection designs to match different machines and production duties.
| Feierte Product | Primary Function | Typical Equipment | Main Selection Variables |
|---|---|---|---|
| Sludge dewatering belt | Separate water from biological/industrial sludge | Belt filter press, gravity thickener, twin-wire press | Sludge characteristics, permeability, cake release, seam, edge reinforcement and wash system |
| Spiral mesh belt | Provide high airflow and continuous conveying | Sludge dryer, paper dryer, textile dryer, food drying equipment | Air permeability, spiral pitch, belt width/length, seam and temperature/material option |
| Polyester forming mesh | Support pulp fibers while draining white water | Paper-machine forming section | Layer structure, shed count, drainage, fiber retention, surface marking and machine speed |
| Desulfurization mesh | Dewater gypsum slurry under vacuum | FGD horizontal vacuum belt filter | Chemical resistance, permeability, cake moisture, tracking, width and joint type |

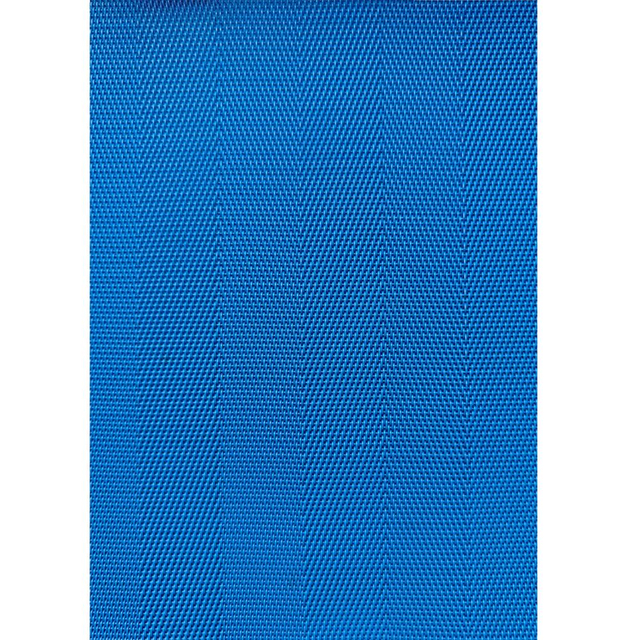

Feierte’s sludge dewatering belt is woven from polyester monofilament yarn and is designed for municipal and industrial wastewater treatment. The smooth monofilament surface promotes drainage while reducing sludge adhesion. In a belt press, the mesh must first allow free water to drain, then withstand increasing mechanical pressure as the sludge passes through wedge and pressure zones. A suitable belt produces a cake that releases cleanly at the discharge roller and recovers permeability after washing.
Feierte offers customized widths, lengths, weave patterns, permeability and seam types, including stainless-steel clipper seams and spiral ring joints. Buyers should provide the press make/model, sludge type, solids concentration, daily capacity and current operating problem. If edge fraying or tracking is the main failure mode, reinforcement and dimensional control may be more important than changing the mesh opening.

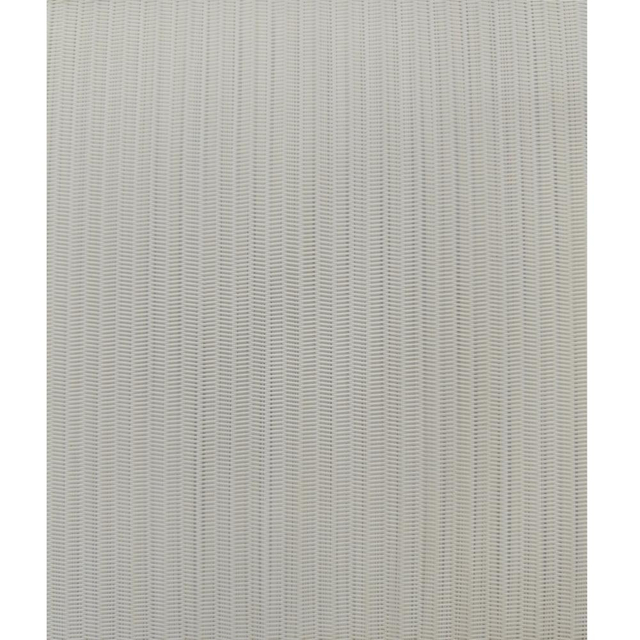

Spiral mesh uses a looped open structure that allows hot air to pass through the belt and around the product. Feierte identifies paper drying, sludge drying, textile processing and food applications. The main performance target is uniform airflow combined with stable conveying. Too little open area slows drying; too much opening may fail to support small or soft products.
Feierte’s spiral mesh page states that custom seamless widths exceeding five meters are available and that width, length, spiral pitch, seam and edge reinforcement can be engineered for the machine. The page also mentions material options beyond polyester, including stainless steel and bronze for particular applications. For a polyester-mesh category project, the belt material should therefore be confirmed rather than assumed from the general category name.

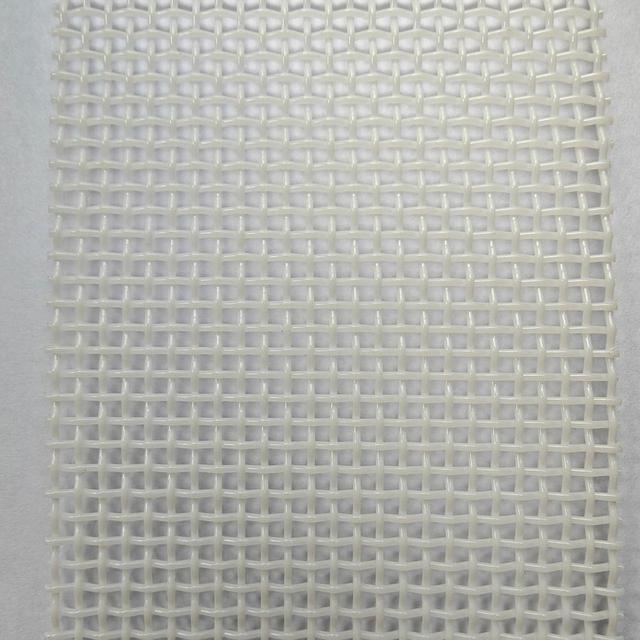

Forming fabric has a specialized role: it must support a diluted pulp suspension while allowing water to drain rapidly enough for sheet formation. Feierte’s polyester forming mesh uses 100% polyester monofilaments and is supplied in single-layer, double-layer, 2.5-layer and 3-layer structures. The product page also lists multiple shed patterns, including 4-, 5-, 7-, 8-, 16- and 24-shed designs.
Different paper grades require different compromises. Tissue needs good formation and gentle support. Kraft and linerboard may use multi-layer structures to handle higher basis weight and strength requirements. Printing and writing paper needs a smooth surface to reduce wire marking and preserve printability. Specialty grades such as filter paper or electrical insulation paper can require very specific retention and surface characteristics. In this subcategory, “micron rating” is not the main purchasing language; fiber support index, drainage, mesh count, air permeability, layer structure, seam and machine speed are more relevant.

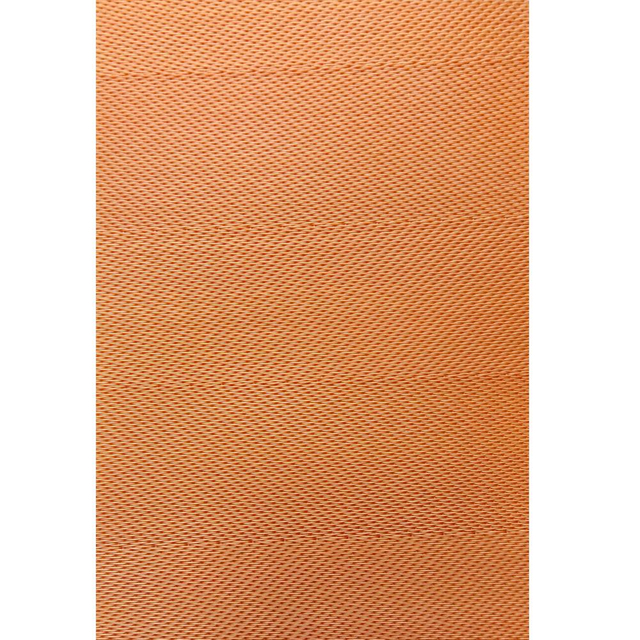

Feierte’s desulfurization mesh is a polyester monofilament belt designed for flue-gas-desulfurization slurry on horizontal vacuum belt filters. The belt continuously separates gypsum crystals from an acidic slurry under vacuum. Dimensional stability is essential because the belts are wide, tensioned and operated continuously. Feierte states that widths up to approximately 3.9 meters are available for this product family.
The weave must balance gypsum retention with rapid filtrate flow. A smooth calendared surface helps the wet cake release at the discharge roller, while stable tracking prevents edge damage. Chemical resistance to the acidic FGD slurry is part of the selection. Buyers should provide slurry pH, temperature, solids characteristics, vacuum filter dimensions and desired cake moisture.
Permeability is the central design variable across this category, but its meaning changes by application. For sludge belts, permeability controls water drainage and solids retention. For spiral dryer belts, it controls airflow and heat transfer. For forming fabrics, it influences drainage and fiber/filler retention. For FGD belts, it controls vacuum dewatering rate and gypsum capture.
The highest permeability is not automatically best. Too-open a sludge belt can lose fines; too-open forming fabric can lose pulp and fillers; excessive FGD opening can increase solids in filtrate. The correct specification is the highest practical flow that still produces acceptable retention and stable operation.
| Joint / Construction Option | Typical Use | Buying Consideration |
|---|---|---|
| Stainless steel clipper seam | Sludge and FGD belts | Fast installation; confirm roller diameter and seam marking/strength |
| Spiral ring joint | Dewatering and conveying belts | Flexible connection with good mechanical continuity |
| Pin seam | Paper forming or suitable mesh constructions | Simplifies installation where machine design allows |
| Endless woven / seamless | High-speed or marking-sensitive applications | Eliminates a conventional joint but may change installation logistics |
| Ultra-wide seamless spiral construction | Large drying systems | Feierte states widths over 5 m are available for spiral mesh |
Many mesh-belt failures are mechanical rather than filtration-related. Misaligned rollers, excessive tension, damaged guides or a belt cut slightly out of square can cause lateral tracking and edge fraying. Before replacing a belt, maintenance teams should inspect the machine and document where wear occurs. A belt that consistently fails on one edge may be signaling a tracking issue rather than weak yarn.
Feierte can customize edge reinforcement and seam design. During commissioning, tension should be increased gradually and tracking checked before full production load. For belt filter presses and FGD systems, wash-water spray bars should be aligned so residue is removed evenly without mechanically cutting the mesh.
Sludge belts require continuous or frequent high-pressure spray cleaning to keep the openings free. Feierte’s dewatering page recommends attention to spray nozzle angle and pressure. FGD belts also benefit from consistent wash systems because gypsum can harden in the mesh if left in place. Forming fabrics are cleaned by the paper machine’s shower system, while dryer spiral belts need removal of fibers, sludge residue or product deposits according to the process.
A cleaning system that is too weak allows blinding; one that is too aggressive can damage monofilament yarns or seams. Maintenance records should include wash pressure, nozzle condition and permeability loss so belt life can be compared accurately.
For Feierte to engineer the correct belt, provide the exact equipment type and model, belt length and width, current seam or joint, roller diameter, operating speed and tension system. Add the process-specific data: sludge solids and polymer dosage for belt presses; product, airflow and temperature for dryers; paper grade and machine speed for forming mesh; or gypsum slurry pH, temperature and target cake moisture for FGD belts.
If the current belt has a problem, include photographs of edge wear, seam failure, blinding, poor cake release or tracking. Submit the data through the Feierte Contact Us page. Feierte can then recommend weave/spiral geometry, permeability, material, edge treatment and joint design instead of quoting only by nominal belt size.
A sludge dewatering belt is a woven monofilament filtration belt designed to retain sludge while draining water under a belt press. A spiral mesh belt has a more open looped structure optimized for airflow and conveying in drying processes.
Provide machine make/model, belt width and length, seam type, roller diameter, operating speed, current mesh or permeability if known, and the process material. Photographs and an old belt sample help confirm the construction.
Yes. Feierte's spiral mesh page states that ultra-wide seamless designs exceeding 5 meters are available. The desulfurization mesh page states widths up to approximately 3.9 meters for FGD vacuum belt filters.
Possible causes include roller misalignment, uneven tension, a belt cut out of square, damaged edges or contamination on rollers. The machine should be inspected before assuming the belt material is defective.
