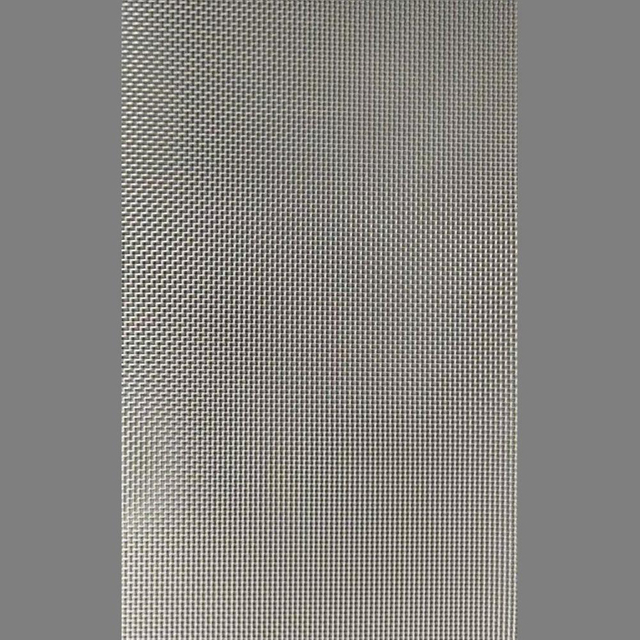

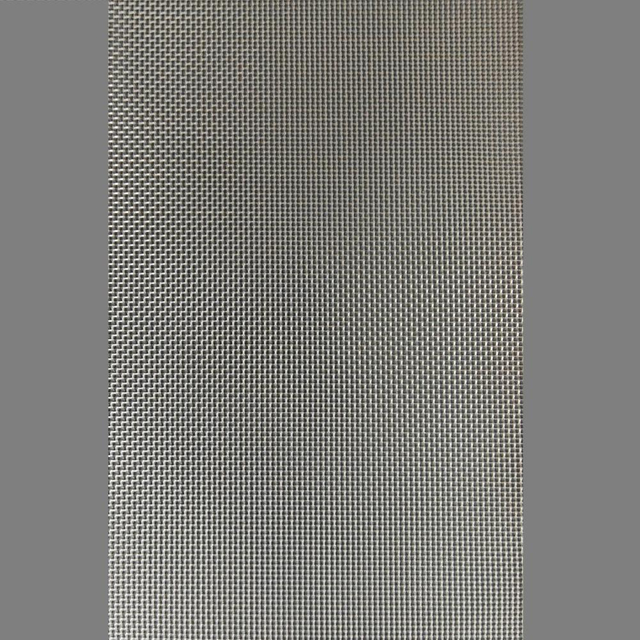

Screen mesh is a precision separation medium used to classify particles by size, remove oversize contamination, protect downstream equipment and stabilize the quality of powders, granules and other process materials. Feierte’s screen mesh category currently includes two distinct polymer families: polyester screen mesh and nylon screen mesh. Both are manufactured from monofilament yarns with controlled openings, but they serve different process priorities. Polyester emphasizes tensile stability, weatherability, moisture resistance and heavy industrial screening, while nylon provides flexibility, abrasion resistance, smooth powder flow and a broad range of fine-screening applications in food, pharmaceutical, chemical and laboratory processes.
For B2B purchasing, screen mesh should be specified by more than a generic mesh count. Mesh opening, yarn diameter, percentage open area, roll width, tension, edge treatment, operating temperature, chemical exposure, product shape, moisture and screening equipment all influence throughput and cut-point consistency. A screen with openings that are technically correct can still blind if damp particles adhere to the yarns. A very fine mesh can reduce production capacity if the screen area is undersized. Feierte’s product pages therefore emphasize precision weaving, uniform apertures, monofilament surfaces and custom roll or cut-to-size formats.
| Selection Factor | Polyester Screen Mesh | Nylon Screen Mesh |
|---|---|---|
| Core material | Polyester monofilament | Polyamide / Nylon monofilament; Feierte page references Nylon 6/6 |
| Primary strength | Dimensional stability, tensile strength, weatherability and low moisture sensitivity | Flexibility, abrasion resistance, smooth surface and fine-powder handling |
| Typical industries | Mining, aggregate, grain/feed, chemicals and building materials | Food powders, pharmaceuticals, fine chemicals, laboratories and medical filtration |
| Outdoor use | Feierte highlights UV/weather resistance | Generally selected more for process flexibility and abrasion than outdoor weathering |
| Moisture behavior | Hydrophobic treatment is highlighted to reduce damp-particle adhesion | Smooth monofilament reduces friction; water absorption should be considered in precise dimensional applications |
| Format customization | Rolls, cut sheets, edge reinforcement, ultra-wide formats | Wide mesh-count range and customized dimensions/grades |
Mesh count and opening size are related but not interchangeable. A mesh with more openings per unit length normally has a smaller aperture, but yarn diameter also changes the free opening. Two fabrics can have similar mesh counts and different actual particle cut points because one uses thicker yarn. For industrial classification, the buyer should specify the desired particle range or actual aperture rather than relying only on an inherited mesh number.
Open area also affects throughput. Finer yarn can increase open area at a given opening size, but mechanical strength may decrease. Thicker yarn improves durability but occupies more of the screen surface. Feierte can adjust thread diameter, mesh count and roll dimensions on the polyester product and offers a wide range of nylon mesh sizes for different screening accuracy requirements. The correct design balances accuracy, capacity and service life.
Dry powders depend on gravity, vibration or centrifugal action to pass through the mesh. Static, low bulk density and particle shape can slow the process even when openings are correct. Fine pharmaceutical or food powders benefit from a smooth nylon monofilament surface that reduces particle retention. Industrial mineral and grain screening often benefits from polyester’s stable tension and resistance to environmental exposure.
Wet screening adds liquid viscosity, surface tension and chemical compatibility to the selection. Polyester can be useful for wet mineral classification because it resists water-related dimensional changes and Feierte highlights hydrophobic surface behavior. Nylon can be used in wet filtration where its chemical resistance fits, but the process should account for polyamide’s greater moisture interaction compared with polyester.
| Problem | Likely Cause | Corrective Direction |
|---|---|---|
| Fine damp material coats the screen | Moisture, low surface energy mismatch or aperture too small | Review hydrophobic/smooth media, vibration, feed moisture and opening size |
| Throughput drops while screen looks clean | Insufficient open area or poor particle presentation | Check yarn diameter, screen area, vibration and material distribution |
| Cut size is inconsistent | Mesh stretched, damaged or openings not uniform | Inspect tension, frame clamping and aperture quality |
| Screen tears near the edge | Poor mounting, sharp frame, excessive tension or inadequate reinforcement | Add edge finishing and correct installation geometry |
| Product contains oversize contamination | Damaged screen, bypass at frame or incorrect aperture | Inspect seals, mesh integrity and actual opening specification |
Feierte positions polyester screen mesh for crushed stone, sand, gravel, minerals, quartz sand, limestone powder and other building-material or quarry applications. These duties combine vibration, abrasion and often outdoor exposure. Stable tension helps maintain classification accuracy across the full screen deck. Polyester’s weatherability and low moisture sensitivity are useful for installations exposed to humidity, rain or temperature cycling.
Polymer screen mesh is not a direct replacement for heavy wire screen in every aggregate duty. Very large rocks and severe impact loads may require metal or polyurethane screening media. Feierte polyester mesh is more appropriate where the particle size, impact energy and screen design suit woven polymer monofilament. Buyers should provide feed size and equipment conditions before substituting materials.
Grain handling uses screens to remove husks, dust, oversized material and foreign contamination from wheat, corn, rice, soybeans and formulated feed. Polyester provides stable openings and can be supplied in large roll formats for industrial sifters. Nylon is commonly selected for finer food powders such as flour, starch, seasoning and milk powder because its smooth surface promotes flow through fine openings.
Where the screen contacts food directly, buyers should specify the required food-contact documentation and cleaning regime. Feierte’s nylon page states that industrial, food and medical grades are offered, while the polyester page references food/agricultural safety compliance for applicable products. The specific approved grade should be documented on the purchase specification.
Nylon screen mesh is particularly relevant for pharmaceutical powders, excipients, herbal extracts, pigments, ceramic powders and additives. The monofilament construction has no loose staple-fiber surface, helping reduce fiber shedding. Uniform openings support consistent particle classification before blending, granulation, tableting or quality-control testing.
Chemical buyers should review solvent and pH compatibility. Feierte’s nylon page highlights strong alkali tolerance, while polyester is described as resistant to various chemical solvents on the industrial screen page. These general statements should be confirmed against the exact chemical, concentration and temperature before long-term use.
Feierte’s polyester screen mesh page states that material can be supplied as continuous rolls or precision-cut sheets and that ultra-wide widths up to 156 inches are available for the referenced product. Heat-sealed borders or other edge reinforcement can reduce fraying and speed installation. Nylon mesh can likewise be customized by mesh size and dimensions for industrial and precision screening.
For OEM buyers, a complete drawing should identify finished width, length, opening, edge configuration, holes, sleeves or fastening details. For distributors, roll length and packaging may be more important. Technical specifications should remain separate from private-label packaging so repeat orders do not drift.
Critical quality checks include aperture uniformity, yarn diameter, roll width, visible defects, tensile behavior and dimensional stability. Feierte’s polyester page specifically references tensile testing and aperture verification. For high-accuracy screening, incoming inspection can compare mesh under magnification or using an agreed aperture measurement method. The objective is not only to verify one point but to confirm consistency across the roll.
Sample validation is particularly important when changing supplier or polymer. Run the candidate mesh with the actual product and measure throughput, oversize/undersize fractions, cleaning frequency and screen life. A mesh that appears identical can behave differently because of yarn surface, heat setting or opening variation.
Provide the screening machine type, frame dimensions, required aperture or mesh count, yarn diameter if specified, process capacity, product particle-size distribution, moisture, temperature and chemical exposure. State whether the mesh will be used dry or wet and whether food, pharmaceutical or medical documentation is required. If the current screen fails, describe blinding, tearing, stretching or inconsistent classification.
Send the details through the Feierte Contact Us page. Feierte can determine whether polyester or nylon is the better direction and can customize roll width, cut dimensions, edge reinforcement and mesh specification. A pre-production sample is recommended for high-precision particle classification.
Polyester is generally selected for dimensional stability, weatherability, low moisture sensitivity and heavy industrial screening. Nylon is valued for flexibility, abrasion resistance and smooth fine-powder screening. The exact chemistry and temperature should still be checked.
For accurate industrial selection, aperture size and yarn diameter are more informative than mesh count alone. Two meshes with the same nominal count can have different free openings if the thread diameter differs.
Yes. Feierte's polyester screen mesh page states that it supplies continuous rolls and precision-cut sheets, with edge finishing options. Nylon mesh is also offered in customized dimensions.
Review material moisture, opening size, yarn surface, vibration and feed distribution. A hydrophobic polyester finish or smooth nylon monofilament can reduce adhesion, but process conditions must also be controlled.
