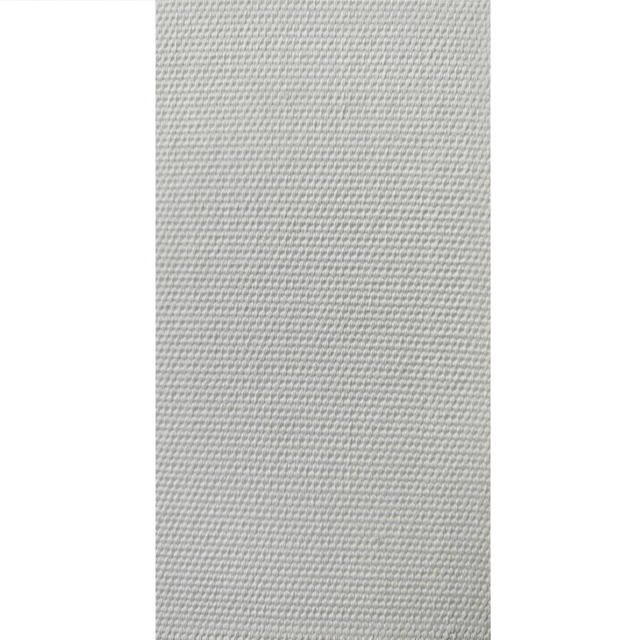

Air slide fabric is not primarily a particle-separation screen. It is a controlled-permeability textile used to distribute low-pressure air evenly beneath dry bulk powder so the material becomes fluidized and can move by gravity or controlled pressure. Feierte’s air slide fabric is woven from high-strength polyester fibers and is designed for air slide conveyors, pneumatic conveying systems, silo and hopper aeration, and bulk powder handling in cement, power, chemical and mineral-processing plants. Its key specification is uniform air permeability across the fabric surface.
In an air slide conveyor, the fabric divides the trough into an upper material chamber and a lower air chamber. Blower air passes through the textile in a distributed manner. When the pressure and permeability are correctly matched, powder loses much of its internal friction and behaves more like a fluid, moving down the conveyor slope without a mechanical belt or screw. If the fabric has dead zones or inconsistent permeability, material can stall, form ridges or create unstable flow. If permeability is excessive, the system wastes air and energy and may create dusting. Feierte therefore supplies multiple permeability grades, thicknesses, widths and continuous roll lengths to match different powders and equipment.
The fabric must create uniform airflow across the entire trough. Local high-flow zones can channel air and disturb the powder bed, while low-flow zones allow compacted material to settle. Feierte’s current page emphasizes laboratory verification of air permeability consistency together with dimensional accuracy and tensile strength. For B2B plants, this consistency can matter more than the absolute permeability number because a stable conveyor depends on even fluidization from inlet to discharge.
The correct permeability depends on powder bulk density, particle size, moisture, cohesiveness, conveyor slope, conveying distance and blower pressure. Dense alumina or mineral powder may require a different air supply from fine cement or fly ash. Feierte recommends selecting the grade from system data rather than using one fabric for every bulk material.
| System Type | How Material Moves | Air Slide Fabric Relevance |
|---|---|---|
| Air slide conveyor | Low-pressure air fluidizes powder and gravity moves it along an inclined trough | Fabric is the core air-distribution element |
| Screw conveyor | Rotating screw mechanically pushes solids | No air slide fabric; higher mechanical contact and wear |
| Belt conveyor | Material rides on a moving belt | Suitable for lumps and bulk solids but not enclosed fluidization |
| Dense/lean pneumatic pipeline | Higher-velocity air moves powder through pipe | Air slide fabric may be used at feed/discharge aeration points but not as the pipeline transport surface |
Feierte identifies cement plants as a primary use. Air slides transport cement powder, raw meal and fine clinker-related dust between mills, silos, separators, packing systems and loadout points. These powders can be abrasive and are produced at high volume, making low-maintenance conveying attractive. The fabric allows the plant to move material with relatively few moving parts in the conveying trough.
Cement systems are sensitive to moisture because hydrated or damp powder can agglomerate and block flow. Feierte highlights polyester’s low moisture absorption and resistance to mildew. The air system and enclosure must still prevent condensation, and the plant should avoid introducing wet compressed air into the lower plenum.
Power plants and mineral operations use fluidization for fly ash, alumina, hydrated lime and other dry powders. Bulk density and particle shape differ substantially among these materials. A fabric grade selected for cement may not produce the correct pressure drop for lighter fly ash or heavier mineral powder. The buyer should provide bulk density and, where possible, particle-size distribution and flowability data.
Abrasive powders can gradually wear the upper surface of the fabric, particularly near feed points. Local reinforcement, smooth support plates and controlled material impact can extend life. If the fabric develops a thin spot, air will preferentially escape there and conveying performance can become unstable before a visible tear occurs.
Air slide fabric is also installed as aeration pads or strips at the base of storage silos and hoppers. Low-pressure air breaks bridges, rat holes and compacted zones, allowing powder to discharge uniformly into feeders. In this use, the fabric may be fixed rather than forming a long conveyor surface, but permeability consistency remains critical.
Aeration design should place pads where stagnant zones occur. Simply increasing blower pressure is not always effective; excessive airflow can entrain powder and overload dust collectors. The textile grade, aeration area and air supply should be engineered as a system.
| Symptom | Possible Cause | What to Check |
|---|---|---|
| Powder stops in the trough | Permeability too low, blower pressure insufficient, damp material or slope problem | Fabric grade, air supply, moisture and conveyor inclination |
| Uneven ridges or channels | Non-uniform permeability, clogged zones or damaged support | Inspect fabric cleanliness, plenum distribution and local wear |
| High blower energy | Fabric too restrictive or system leaking/overpressurized | Pressure drop, fabric permeability, seals and blower setting |
| Dusting at discharge | Too much air or uncontrolled venting | Air volume, vent filter capacity and material velocity |
| Fabric fails near feed point | Abrasion or impact from dense powder | Feed chute design, reinforcement and material drop height |
Feierte describes high-strength polyester fibers that resist stretching, sagging and deformation. The textile is clamped or sealed along the air slide trough and must stay flat so air does not bypass around the edges. Uneven tension can create wrinkles that trap product. The support deck below the fabric should be smooth and perforated or structured according to the conveyor design so the textile is not locally overstressed.
Installation joints should minimize leakage. For long conveyors, roll length and splice planning matter because every joint can become a local pressure-loss or powder-retention point. Feierte offers non-standard widths and continuous lengths to support existing and new equipment.
Air slide fabric works best with dry free-flowing powder. Moist material can penetrate and cake into the textile, reducing permeability. Feierte’s polyester construction is described as moisture resistant, but the system must still prevent water ingress. Condensation inside silos or air lines should be corrected rather than relying on the fabric to remain open indefinitely.
Cleaning methods should avoid damaging the dense woven structure. Depending on the powder, dry air, vacuum or careful mechanical removal may be appropriate. Aggressive scraping can create local thinning. If permeability cannot be restored uniformly, replacement is safer than operating with uncontrolled airflow distribution.
One reason plants use air slides is that material movement can be achieved with low-pressure air and gravity rather than continuous mechanical contact. Feierte’s product page connects uniform permeability with reduced pressure loss and energy consumption. The real energy performance depends on blower efficiency, leak control, trough incline and the permeability selected for the material.
During commissioning, engineers should record blower pressure, air volume, conveying rate and any dead zones. Once a stable baseline is established, changes in pressure at the same throughput can indicate fabric clogging or leakage. This turns the fabric from an invisible consumable into a measurable process component.
Plants often replace air slide fabric during planned shutdowns, making repeatability important. Feierte states that each roll is tested for permeability consistency, dimensional accuracy and tensile strength. Procurement specifications should record the approved permeability grade, thickness, width, roll length and fabric construction. A generic “polyester air slide cloth” description is not enough to guarantee the same conveyor behavior.
For OEMs, fabric may be cut into pads or conveyor sections after delivery. For end users, custom width can reduce waste and installation time. Packaging should keep rolls clean, dry and protected from crushing before installation.
Provide the conveyed powder, bulk density, particle-size range, moisture, conveyor width and length, incline, blower pressure/airflow if known, operating temperature and current fabric permeability or sample. For silo aeration, provide the pad dimensions, vessel size and discharge problem. State whether the current problem is material stagnation, high energy use, clogging or short fabric life.
Send the engineering data through the Feierte Contact Us page. Feierte can recommend permeability, thickness, width and roll length and can manufacture to non-standard dimensions. A sample or small installation trial is useful when the powder has unusual flow behavior or when converting from a different supplier’s fabric.
Use powder bulk density, particle size, moisture, conveying distance, trough incline and blower pressure. Too little permeability can cause stagnation; too much can waste air and create unstable fluidization.
Feierte lists cement, fly ash, alumina, hydrated lime, heavy mineral powders and other dry bulk materials used in cement, power, chemical and mineral-processing systems.
Yes. The current product page states that thickness, air-permeability grade, non-standard width and continuous roll length can be customized for new or existing conveying systems.
Fabric clogging, moisture, powder buildup, air leakage or changes in material properties can increase resistance. Inspect the fabric and air-distribution system before increasing blower pressure permanently.
