Industrial facilities face escalating regulatory pressure to capture sub-micron particulate matter, specifically PM2.5 and PM10. Achieving this in extreme-temperature environments without bottlenecking production requires specialized filtration technology. Standard filter media in high-heat, fine-dust scenarios inevitably enter a failure loop. They suffer from rapid blinding, high differential pressure, frequent bag replacements, and ultimately trigger non-compliance fines. You need a material designed specifically to handle thermal stress and abrasive particulates simultaneously.

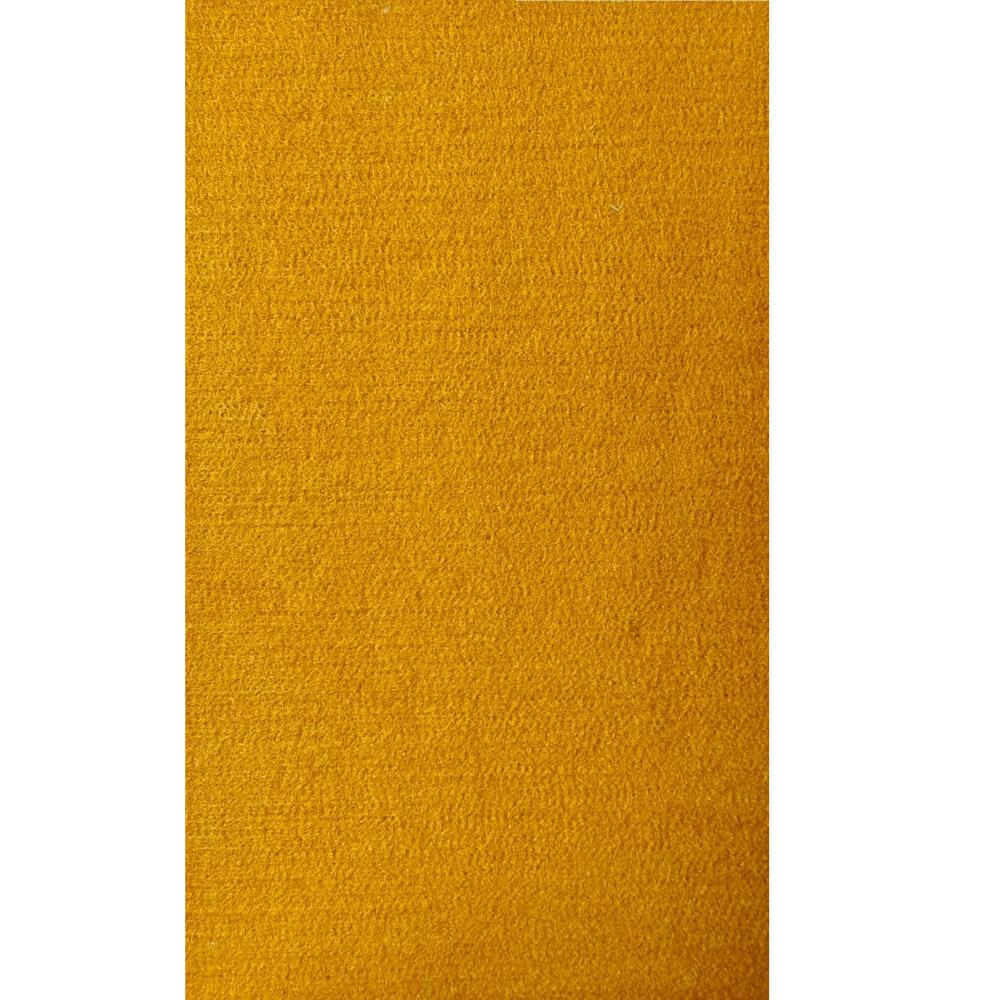

Polyimide fibers offer a highly specialized, high-temperature filtration solution. This material resolves the core operational failures associated with standard polyester or aramid bags in harsh environments. We will evaluate the specific mechanical advantages of this media, identify its ideal application environments, and analyze the comparative trade-offs against other high-temperature alternatives. Understanding these variables ensures your baghouse operates efficiently, maintains compliance, and avoids catastrophic media failure.
Unique Fiber Morphology: P84 utilizes a multi-lobal (irregular) cross-section, maximizing surface area to trap fine dust on the surface rather than allowing depth penetration, ensuring lower pressure drops.
Thermal Stability: Operates continuously at 240°C (464°F) with peaks up to 260°C (500°F), outperforming standard media in high-heat industrial processes.
Strategic Application: Best suited for cement kilns, waste incinerators, and asphalt plants where high temperatures and fine, abrasive dust intersect.
Media Comparison: While highly effective for temperature and fine dust, P84 needle felt requires careful evaluation against PPS needle felt when high moisture or specific chemical corrosives (like severe alkalis) are present.
The defining characteristic of polyimide fibers is their trilobal or multi-lobal cross-section. Unlike standard synthetic fibers that feature a smooth, round profile, polyimide fibers possess an irregular shape. This unique geometry drastically increases the available surface area of the individual fibers. When manufactured into P84 needle felt, this increased surface area fundamentally changes how the media interacts with particulate matter.
Filtration generally falls into two categories: depth filtration and surface filtration. Smooth, round fibers rely heavily on depth filtration, where dust particles penetrate the media matrix and become trapped within the felt. Over time, sub-micron particles permanently embed themselves, leading to irreversible blinding and escalating differential pressure. The multi-lobal structure of polyimide promotes surface filtration. The irregular fibers interlock to create a dense, highly permeable microporous surface. Fine dust collects on the exterior of the felt, forming a uniform dust cake. This prevents particles from migrating deep into the media, ensuring the baghouse maintains a stable, low pressure drop over its operational life.
To understand the mechanical advantage, consider the aerodynamic behavior of dust particles approaching the media. With cylindrical fibers, the interstitial spaces are relatively large and direct, allowing high-velocity fine dust to shoot straight into the felt depth. Multi-lobal fibers pack together to create a highly tortuous path at the very surface. The dust particles lose kinetic energy immediately upon impact with the outer layer, dropping out of the airstream and building the primary dust cake on the exterior face.
Fiber Type | Cross-Section Shape | Primary Filtration Mechanism | Surface Area Relative to Round Fiber |
|---|---|---|---|
Polyester | Round / Cylindrical | Depth Filtration | Baseline (1x) |
Aramid | Round / Cylindrical | Depth Filtration | Baseline (1x) |
Polyimide | Multi-lobal / Irregular | Surface Filtration | Approx. 1.9x |
PTFE | Irregular Ribbon | Surface Filtration | Variable |
Industrial baghouses must meet strict baseline criteria to qualify as utilizing high efficiency filter media. The primary metric is achieving capture rates of 99.9% or higher for PM2.5 particulates. Maintaining this efficiency becomes exponentially more difficult as gas stream temperatures rise. Thermal stress degrades the structural integrity of standard polyester or fiberglass media, causing fibers to stretch, shrink, or snap. This mechanical degradation opens microscopic pathways for fine dust to escape.
Polyimide maintains its dimensional stability and structural integrity under continuous thermal loads up to 240°C. The fibers exhibit exceptionally low thermal shrinkage, typically less than 1% at 250°C. Because the fibers retain their shape and interlocking structure under high heat, the media prevents emissions leakage during aggressive pulse-jet cleaning cycles. The high surface area ensures that even immediately after a cleaning pulse, a microscopic residual dust cake remains intact, providing continuous high-efficiency capture without bleeding fine particulates into the clean air plenum.
While the raw polyimide fiber offers excellent mechanical filtration, specific industrial environments demand enhanced defenses. Manufacturers apply various surface finishes to optimize performance. Singeing and calendering are standard mechanical treatments that melt and flatten the surface fibers, creating a smoother face that improves dust cake release. For environments with sticky particulates or mild chemical threats, PTFE impregnation is highly effective. The PTFE coats the polyimide fibers, reducing surface tension and providing a protective barrier against moisture and mild acids.
Filtration engineers also utilize strategic fiber blending to balance performance requirements. Blending polyimide with PTFE fibers creates a composite felt that leverages the high surface area of polyimide with the exceptional chemical resistance of PTFE. Another common blend involves mixing polyimide with polyphenylene sulfide. This approach enhances the overall oxidation resistance of the felt while maintaining superior surface filtration characteristics, offering a tailored solution for complex exhaust streams.
The standard manufacturing sequence for high-performance polyimide felt involves several precise steps:
Fiber blending and carding to align the multi-lobal fibers into a uniform web.
Cross-lapping to build the required fabric weight and thickness.
Needle-punching the web into a woven scrim (often PTFE or polyimide) for dimensional stability.
Singeing the dust-cake side to remove loose fibers and prevent dust entanglement.
Calendering under high heat and pressure to set the fabric thickness and smooth the surface.
Chemical dipping (if specified) for PTFE impregnation, followed by high-temperature curing.
Cement production generates highly abrasive dust, extreme exhaust temperatures, and strict emissions limits. Baghouses on cement kilns and clinker coolers must operate continuously without bottlenecking the draft fans. Dust loading in kiln exhaust can easily exceed 500 g/Nm3. Polyimide media excels in this environment. The multi-lobal fibers withstand the abrasive nature of raw cement dust better than delicate membrane laminates. Because the media relies on surface filtration, it maintains high airflow permeability. This stable permeability reduces the load on induced draft fans, lowering overall energy consumption while strictly adhering to PM2.5 emission mandates.
Municipal solid waste incinerators and biomass boilers present chaotic exhaust profiles. Temperatures fluctuate wildly, sparks carry over from the combustion zone, and the particulate composition includes a mix of unburned carbon, fly ash, and chemical compounds. Polyimide is inherently non-flammable, boasting a Limiting Oxygen Index (LOI) of 38%, providing a critical safety buffer against spark carryover. Its thermal stability easily handles the temperature spikes inherent in biomass combustion. The media effectively captures the complex, varied particulates without suffering immediate thermal degradation during operational upsets.
Asphalt mixing plants deal with a challenging combination of fine stone dust and unburned, sticky hydrocarbons at elevated temperatures. Counter-flow drum mixers often push exhaust temperatures near the operational limits of standard aramid bags. If sticky particulates penetrate the filter media, they cause rapid, irreversible blinding. The surface filtration characteristics of polyimide allow for excellent cake release. The irregular fibers prevent the sticky asphalt particulates from embedding deep into the felt. During the cleaning cycle, the dust cake shears off cleanly, preventing the severe baghouse pressure spikes that typically plague asphalt operations.
Furnaces in smelting and metallurgical processing emit sub-micron metallic oxides and fumes at very high temperatures. Capturing these metallurgical fumes requires media with exceptionally tight pore structures that will not degrade under continuous high-volume airflow. Electric arc furnaces and induction furnaces generate particulate that is notoriously difficult to capture due to its small aerodynamic diameter. Polyimide provides the necessary structural stability. The dense surface created by the multi-lobal fibers efficiently traps sub-micron metallic oxides, preventing them from escaping the stack. The media withstands the high-velocity airflow required to ventilate metallurgical furnaces without suffering flex fatigue.
Managing high-volume flue gas in coal-fired power plants requires balancing strict particulate limits with potential temperature excursions. In low-sulfur coal applications, exhaust temperatures frequently exceed the operational limits of standard media like polyester or homopolymer acrylic. Polyimide serves as a premium alternative in these specific scenarios. It handles the high heat and captures the fine fly ash efficiently. Plant operators must strictly manage acid dew points, as polyimide is vulnerable to acid hydrolysis if the gas stream drops below the dew point. Low-sulfur coal produces less SO3, which lowers the acid dew point, creating a viable operating window for polyimide media.
Selecting the correct high-temperature media requires matching the fiber's thermal limits to your actual exhaust gas baseline and excursion risks. Polyimide operates continuously at 240°C (464°F) and handles short-term peak excursions up to 260°C (500°F). In contrast, polyphenylene sulfide media operates continuously at 190°C (374°F) with peaks up to 210°C (410°F). If your process consistently runs above 190°C, polyimide is the required choice. If your process runs at 160°C but experiences frequent spikes above 200°C, polyimide provides the necessary thermal safety margin to prevent catastrophic bag failure.
Thermal Parameter | Polyimide (P84) | Polyphenylene Sulfide (PPS) |
|---|---|---|
Continuous Operating Temperature | 240°C (464°F) | 190°C (374°F) |
Peak Excursion Temperature | 260°C (500°F) | 210°C (410°F) |
Thermal Shrinkage at 200°C | < 1.0% | < 1.5% |
The chemical composition of the exhaust gas dictates media survival just as much as temperature. PPS needle felt is highly sensitive to oxygen. When oxygen levels in the exhaust stream exceed 8-10%, polyphenylene sulfide fibers rapidly oxidize, become brittle, and shatter. Polyimide possesses superior oxidation resistance, easily handling atmospheric oxygen levels (21%) at high temperatures, making it mandatory for high-heat, high-oxygen environments like cement kilns.
Chemical vulnerabilities exist for both materials. Polyphenylene sulfide outperforms polyimide in environments with high sulfur content, severe acids, and high moisture (hydrolytic conditions). Polyimide is highly susceptible to alkaline attack; high pH environments will rapidly degrade the fibers. You must deploy polyphenylene sulfide in high-sulfur coal boilers or highly acidic chemical processing, provided the temperature and oxygen levels remain within its operational thresholds.
Before selecting a media, engineers must evaluate the gas stream for the following chemical threats:
Oxygen concentration (determines oxidation risk).
Moisture content by volume (determines hydrolysis risk).
SO2 and SO3 concentrations (determines acid dew point).
Presence of sodium, potassium, or calcium compounds (determines alkaline attack risk).
Evaluating filter media requires looking beyond the initial installation and focusing on long-term operational efficiency. Polyimide media directly impacts the daily running metrics of a baghouse. Because the multi-lobal fibers promote surface filtration, the differential pressure across the tubesheet remains consistently lower than with depth-filtration media. This lower pressure drop translates directly into reduced electrical load on the main draft fans.
The superior cake release properties mean the baghouse requires fewer cleaning pulses to maintain airflow. Reducing the pulse frequency lowers compressed air consumption, which is a major utility draw in heavy industry. The robust structure of the polyimide fibers also resists mechanical wear from continuous pulsing. By operating at a lower differential pressure and requiring less aggressive cleaning, polyimide bags frequently achieve operational lifespans of 3 to 5 years in harsh environments, significantly reducing the frequency of maintenance shutdowns and labor requirements.
Regulatory frameworks like NESHAP (National Emission Standards for Hazardous Air Pollutants) and MACT (Maximum Achievable Control Technology) require industrial facilities to utilize the best available technology for particulate capture. Polyimide media maps directly against these stringent requirements. Independent testing standards, such as VDI 3926, validate its performance. Under VDI 3926 testing, which simulates thousands of cleaning cycles, polyimide consistently demonstrates minimal residual pressure drop and exceptionally low emission rates, proving its capability to capture sub-micron PM2.5 and PM10 particulates reliably over long operational cycles.
The air-to-cloth ratio dictates how much gas volume a specific area of filter media can handle. Because polyimide's multi-lobal structure creates a highly permeable surface, it often allows for higher air-to-cloth ratios without sacrificing filtration efficiency. When retrofitting an existing baghouse with polyimide, engineering guidelines suggest you will likely observe a stabilization or reduction in the differential pressure across the tubesheet. This allows operators to either push more volume through the existing footprint or reduce fan speeds to save energy, provided the ductwork velocities remain sufficient to prevent dust fallout.
Typical air-to-cloth ratios for polyimide media vary by application but generally allow for aggressive sizing:
Cement Kiln Exhaust: 1.0 to 1.3 m/min.
Asphalt Drum Mixers: 1.2 to 1.5 m/min.
Waste Incinerators: 0.9 to 1.1 m/min.
Metallurgical Furnaces: 1.1 to 1.4 m/min.
The interaction between the media's surface structure and the pulse-jet cleaning mechanism determines the bag's longevity. Polyimide's surface filtration ensures the dust cake forms on the outermost layer. When the compressed air pulse expands the bag, the cake shears off easily. To maximize bag life, operators must optimize pulse pressure and frequency. Over-pulsing polyimide bags at excessively high pressures causes unnecessary mechanical fatigue. Because the cake releases easily, you can typically lower the header pressure from 90 psi down to 60 or 70 psi and extend the time between pulses, preserving the fiber integrity and reducing wear against the support cages.
Polyimide is susceptible to hydrolysis when exposed to high-moisture environments combined with high temperatures. If the exhaust gas drops below the dew point, moisture condenses on the bags, reacting with the polyimide fibers and causing them to lose tensile strength and tear. Mitigate this risk through strict dew point management. Ensure the baghouse is pre-heated before introducing the main process gas. Insulate the baghouse housing to prevent cold spots. Maintain exhaust temperatures at least 20°C above the calculated acid dew point at all times.
High pH environments are catastrophic for polyimide fibers. Exposure to severe alkaline compounds causes rapid chemical degradation, leading to complete bag failure in a matter of weeks. You must conduct a comprehensive gas stream chemical analysis prior to specifying polyimide. Identify all chemical constituents, particularly sodium, potassium, and calcium compounds. If alkaline compounds are present in high concentrations, polyimide is not a viable option, and you must pivot to an alternative media like PTFE or polyphenylene sulfide.
Improper bag-to-cage fit is a primary cause of premature failure. Polyimide fibers are robust but can suffer from flex fatigue and abrasion if improperly supported during the violent pulse-jet cleaning cycle. Specify cages with a high wire count, typically 12 to 20 longitudinal wires, to provide maximum support and limit the flexing arc of the fabric. Ensure the ring spacing is tight enough to prevent the bag from collapsing inward too sharply.
Follow these strict installation protocols to prevent mechanical damage:
Inspect all cages for broken welds, sharp edges, or rust before installation.
Ensure the snap-band seats perfectly flush within the tubesheet hole to prevent bypass leaks.
Verify that the bag bottom does not touch the hopper walls or adjacent bags.
Install venturi nozzles at the top of the cages to ensure the cleaning pulse is directed straight down the center of the bag.
Unnoticed temperature excursions or shifts in chemical composition will degrade polyimide media before operators realize a problem exists. Deploy specific sensor technologies to protect the investment. Install triboelectric probes in the clean air plenum to detect microscopic particulate spikes, indicating early bag wear. Utilize continuous differential pressure monitoring tied to the plant's SCADA system to track blinding trends. Place fast-acting thermocouples directly at the baghouse inlet to trigger automated bypass dampers if temperatures exceed the 260°C peak threshold.
Pull a representative dust sample from your hoppers and send it to a laboratory for pH and chemical composition testing to rule out alkaline threats.
Log your baghouse inlet temperatures and oxygen levels for 30 days to confirm they align with polyimide's operational profile.
Inspect your current baghouse cages to verify they have at least 12 longitudinal wires and are free of broken welds or sharp edges.
Calculate your current compressed air usage and differential pressure to establish a baseline for measuring future operational improvements.
A: Polyimide media operates continuously at 240°C (464°F) and can withstand short-term peak temperature excursions up to 260°C (500°F) without melting or losing structural integrity.
A: The fibers feature a multi-lobal, irregular cross-section that creates a dense, microporous surface. This promotes surface filtration, trapping sub-micron particles on the exterior and preventing depth penetration and blinding.
A: It is vulnerable to hydrolysis in high-moisture, high-heat conditions. You must manage dew points strictly and pre-heat the baghouse. PTFE impregnation can offer moderate protection against moisture.
A: Choose polyphenylene sulfide when exhaust temperatures are strictly below 190°C, oxygen levels are under 8%, and the gas stream contains high levels of sulfur, moisture, or severe acids.
A: Yes, to prevent flex fatigue and abrasion, polyimide bags require well-supported cages, typically featuring 12 to 20 longitudinal wires and tight ring spacing to limit fabric movement during pulsing.
